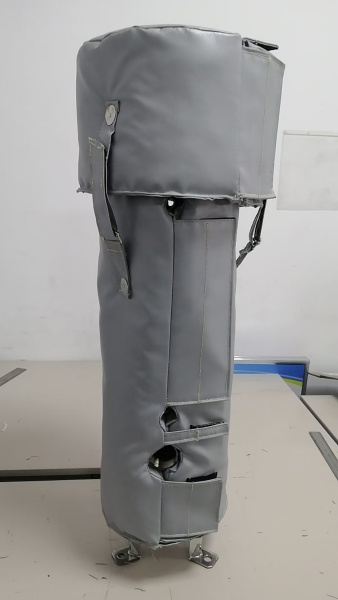

What Is a Removable Filter Insulation Cover?

A removable filter insulation cover is a custom-made thermal insulation jacket designed to fit around industrial filter housings, basket strainers, Y-strainers, cartridge filter vessels, and other filtration equipment. Its main purpose is to reduce heat loss, lower exposed surface temperature, improve workplace safety, and allow maintenance teams to remove and reinstall the insulation whenever the filter needs inspection, cleaning, or element replacement.

In many industrial plants, filter housings are installed in steam lines, hot oil systems, chemical processing lines, marine engine rooms, food production equipment, and power plant piping systems. These filters often operate at elevated temperatures and require regular service access. A fixed insulation system can be difficult to remove and may be damaged during maintenance. A removable filter insulation cover solves this problem by combining thermal protection with practical accessibility.

How Does a Removable Filter Insulation Cover Work?

The cover wraps around the filter body and is secured with hook-and-loop tape, stainless steel buckles, straps, D-rings, snap fasteners, or wire lacing. The insulation core helps reduce heat transfer from the hot filter housing to the surrounding environment, while the outer fabric protects the insulation layer from abrasion, oil mist, moisture, and general industrial exposure.

Because the cover is not permanently fixed, operators can open it when the filter housing needs to be serviced. After maintenance is completed, the same cover can be reinstalled. This reusable design is especially valuable for filters that require frequent cleaning, replacement, or pressure inspection.

Typical Material Construction

A custom removable filter insulation cover is usually made with three functional layers: an outer protective fabric, a thermal insulation core, and an inner high-temperature liner. The final material combination depends on operating temperature, installation environment, maintenance frequency, and exposure conditions.

Where Are Removable Filter Insulation Covers Used?

Removable filter insulation covers are used wherever industrial filters, strainers, or filtration vessels must remain insulated but accessible. They are commonly installed in process systems where heat retention, personnel protection, and equipment maintenance are all important.

• Steam filter housings and steam strainers
• Hot oil filtration systems
• Industrial basket strainers and Y-strainers
• Chemical process filtration equipment
• Food and beverage processing lines
• Marine engine room piping systems
• Power plant auxiliary piping systems
• Exhaust filtration and high-temperature ducting systems
• OEM machinery requiring fitted thermal insulation jackets

Why Use a Removable Cover Instead of Fixed Insulation?

Filter housings are different from straight pipes. They often include covers, flanges, drain ports, pressure gauges, handles, brackets, clamps, and pipe connections. These areas are difficult to insulate with standard pipe insulation or flat blankets. When maintenance is required, fixed insulation may need to be cut, removed, and rebuilt.

A removable insulation cover is designed according to the actual shape of the filter. It can include cut-outs for gauges, drains, flanges, and pipe branches. This makes the installation cleaner, more practical, and easier to reuse.

• Energy saving: Helps reduce heat loss from heated filter housings and connected equipment.
• Maintenance access: Can be removed and reinstalled without destroying the insulation system.
• Personnel protection: Helps reduce direct contact with hot metal surfaces.
• Custom fit: Designed around the actual geometry of the filter body and piping layout.
• Reusable design: Reduces replacement cost compared with disposable or damaged fixed insulation.
• Cleaner appearance: Provides a fitted, professional insulation solution for industrial equipment.

What Information Is Needed for Custom Production?

Since filter housings and strainers vary by manufacturer and installation layout, most removable insulation covers are custom made. To produce an accurate cover, the following information is usually required:

• Filter housing diameter and overall length
• Body shape and installation direction
• Inlet and outlet pipe size and position
• Flange diameter, flange thickness, and bolt clearance
• Drain, vent, pressure gauge, handle, and bracket positions
• Operating temperature and target surface temperature
• Indoor or outdoor installation environment
• Preferred insulation thickness and fastening method
• Photos, drawings, samples, or equipment data sheets

Custom Removable Filter Insulation Covers from BSTFLEX

BSTFLEX manufactures custom removable filter insulation covers for industrial filter housings, strainers, process piping equipment, and OEM thermal protection projects. Covers can be produced according to drawings, photos, samples, or detailed measurement sheets. Material options include fiberglass fabric, silicone coated fiberglass fabric, PTFE coated fiberglass fabric, aluminum foil fiberglass fabric, stainless steel mesh, silica insulation, ceramic fiber insulation, and other high-temperature insulation materials.

For projects that require reliable heat retention and easier maintenance access, our Custom Removable Filter Insulation Cover provides a practical solution for industrial filters, strainers, steam systems, hot oil lines, chemical processing equipment, marine systems, and power plant applications.

FAQ

What is a removable filter insulation cover?

It is a custom thermal insulation jacket fitted around industrial filter housings, strainers, or filtration vessels. It helps reduce heat loss and can be removed for inspection, cleaning, or filter replacement.

Can a removable filter insulation cover be reused?

Yes. It is designed for repeated removal and reinstallation, making it suitable for equipment that requires regular maintenance access.

What types of filters can be insulated?

Common applications include basket strainers, Y-strainers, cartridge filter housings, steam filters, hot oil filters, chemical filtration vessels, and process filtration equipment.

What materials are available?

Available materials include fiberglass fabric, silicone coated fiberglass fabric, PTFE coated fiberglass fabric, aluminum foil fiberglass fabric, stainless steel mesh, fiberglass insulation mat, silica insulation mat, and ceramic fiber insulation mat.

How do I order a custom filter insulation cover?

Send the filter housing dimensions, photos, drawings, operating temperature, insulation thickness requirement, and details of flanges, gauges, drains, handles, and pipe connections.
